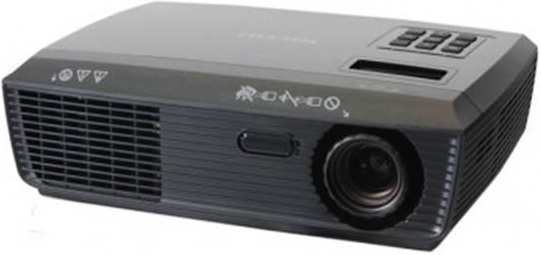

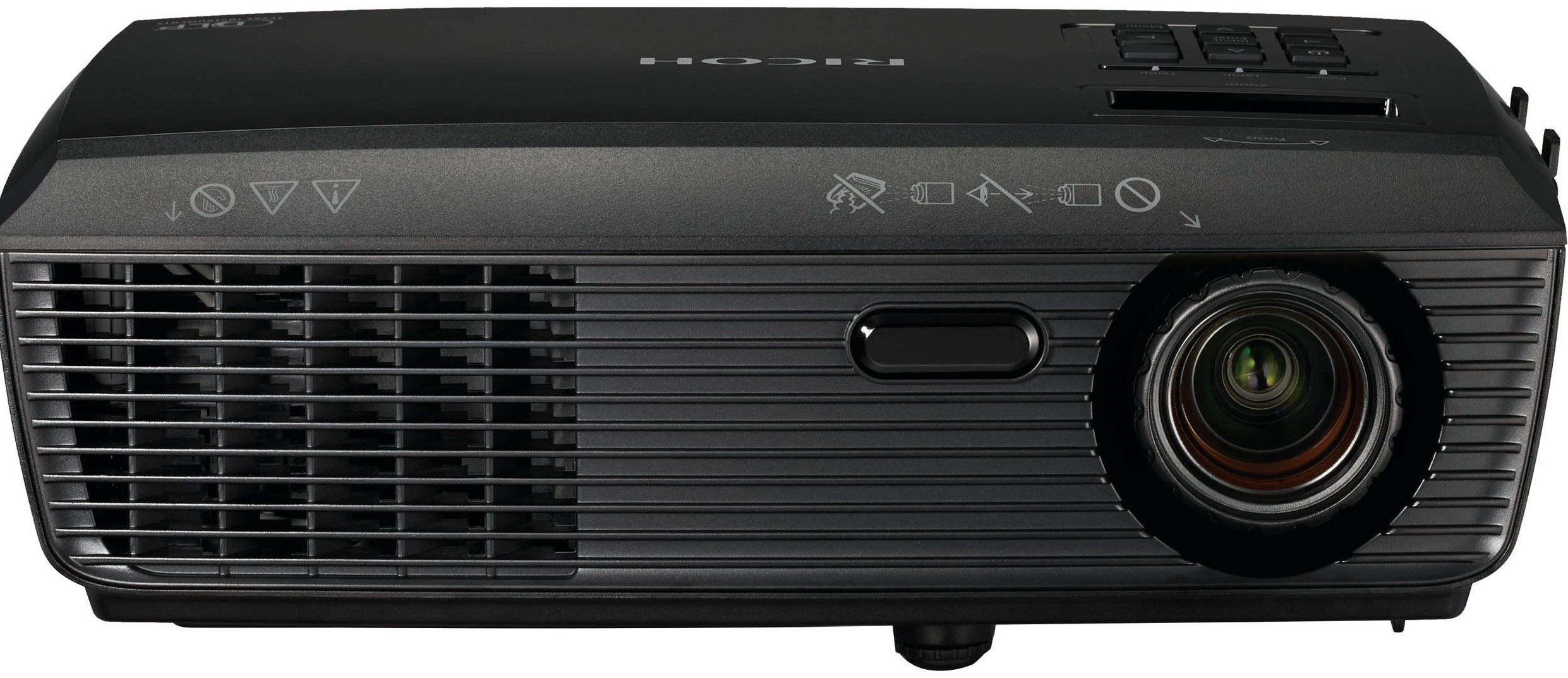

Shopping Cart Ricoh Aficio PJ S2340 DLP Portable Projector
Product Details
Specifications
Accessories
Reviews
Product Details
Main Features
- 3000 lumens
- SVGA Resolution
- Screen size from 30 - 300 inches
- Small design
- Lightweight
- Suitable for small and mid sized rooms
- Non-networked
- Optional 3D tools
- Multiple input terminals
- Convenient remote control
Specifications
General Specifications
| Projection system: | Single chip DLP | |
| Resolution: | PJ S2340: 480,000 (800 x 600 pixels) | |
| PJ X2340: 786,432 (1,024 x 768 pixels) | ||
| Panel: | Panel size: 0.55 inch | |
| Aspect ratio: 4:3 | ||
| Brightness: | 3,000 lumen | |
| Colour reproducibility: | 1,073,000,000 colours | |
| Contrast ratio: | 2,200:1 | |
| High contrast ratio: | 10,000:1 | |
| Projection screen size: | 30" to 300" | |
| Projection distance: | 1.2 to 13.1 m (from rear of unit to projection surface) | |
| Lamp: | High-pressure mercury lamp: standard: 190 W, Eco mode: 160 W | |
| Lamp life: | Standard: 4,500 hours | |
| Eco mode: 6,000 hours | ||
| RGB compatible signals : | Real display: | SVGA (800 x 600), VGA (640 x 480), PJ X2340: XGA (1,024 x 768) |
| Compressed representation: | UXGA (1,600 x 1,200), SXGA (1,280 x 1,024), WXGA (1,280 x 800), XGA (1,024 x 768) | |
| Input signals: | NTSC | |
| PAL | ||
| SECAM | ||
| NTSC4.43 | ||
| PAL-M | ||
| PAL-60 | ||
| 50 Hz (mono) | ||
| 60 Hz (mono) | ||
| Analogue RGB compatible scanning frequency: | Horizontal: | 15 - 91.1 kHz |
| Vertical: | 24 - 85 Hz | |
| Zoom ratio: | 1.1 | |
| Zoom: | Manual | |
| Focus: | Manual | |
| Connection terminal: | Mini D-SUB15pin x 1 (Computer IN) | |
| Mini D-SUB15pin x 1 (Monitor OUT) | ||
| RCA_1pin x 1 (Video) | ||
| Mini Jack x 1 (Audio1 IN/OUT) | ||
| HDMI x 1 | ||
| RS-232C 3-pin x 1 (service) | ||
| Primary features: | Mute (Blank) | |
| Freeze | ||
| Re-size (Magnify) | ||
| Password protection | ||
| Eco mode | ||
| 3D ready | ||
| Kensington lock | ||
| Built-in speaker: | 2 W mono | |
| Dimensions (W x D x H): | 286 x 100 x 208 mm | |
| Weight: | 2.4 kg | |
| Power source: | 100 - 240 V, 50/60 Hz | |
ECOLOGY |
||
| Power consumption: | Operating power: | 273 W |
| Energy Saver mode: | 210 W | |
| Stand-by mode: | 0.5 W | |
| Operating temperature: | 5°C - 40°C | |
| Operating humidity: | 20% - 80% | |
| Storage conditions: | Temperature: | -20°C - 60°C |
| Humidity: | 20% - 80% | |
Download Manufacturer SpecificationsAccessories
Reviews
Make sure that you clean the filters or your projector regularly. Many projectors will alert you to do so based upon usage hours. However, if your projector is in a dusty environment, you may want to clean the filters more often.
If your projector is left in a car when it's 40 degrees or below, it is possible the projector lamp will explode if you turn the projector on immediately. Allow your projector to warm up to room temperature before turning it on in order to avoid the dangerous scenario of the lamp exploding.
If your projector is mounted, ensure that it receives proper air circulation. Excessive heat can reduce the lamp life significantly.
