Shopping Cart Canon imagePROGRAF iPF785 36" Printer
Product Details
Specifications
Accessories
Reviews
Product Details
Main Features
- Dye/Pigment Reactive Ink Set
- High-Speed Printing
- 320GB Internal Hard Drive
- Large Capacity Ink Tanks
- Sub-Ink Tank System
- Economy Print Mode
- Flat Stacker/Basket
- Precision Printing: High-Density PF-04 Print Head
- Direct Print & Share
- imagePROGRAF Print Utility
- Canon Printer Driver
- Status Monitor
- Accounting Manager
- PosterArtist Lite
- PosterArtist
- Print Plug-In for Microsoft Office
- Optimized Module for AutoCAD
Specifications
| Printer Type | 5-Color 36-inch Printer |
| Number of Nozzles | Total: 15,360 MBK: 5,120 nozzles C, M, Y, BK: 2,560 nozzles each |
| Nozzle Pitch | 1,200 dpi Non-firing nozzle detection and compensation |
| Print Resolution (Up to) | 2,400 x 1,200 dpi (Max) |
| OS Compatibility | Windows® (XP/Vista/7/8) Macintosh® (OSX 10.6.8-10.9X) |

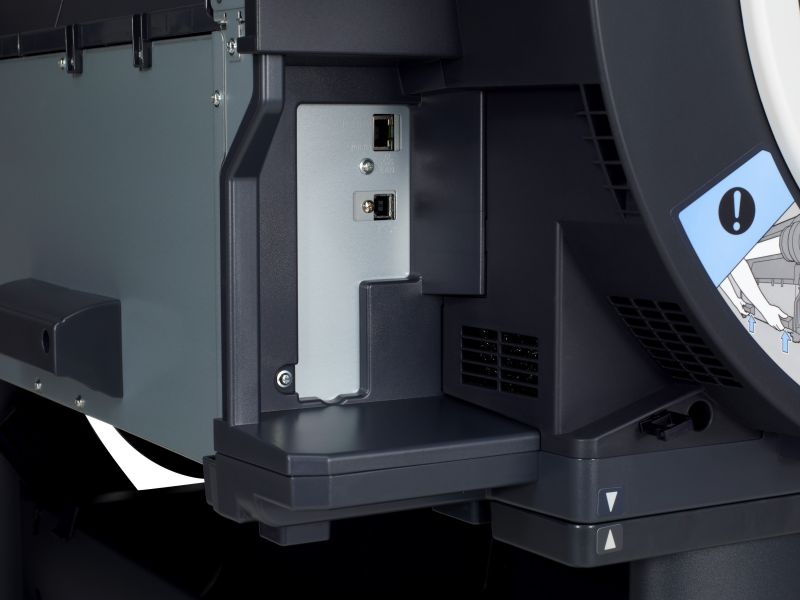

| Standard Interfaces | USB 2.0 High-Speed 10/100/1000 Base-T/TX |
| Ink Droplet Size | 4 picoliter |
| Ink Droplet Size | Dye/Pigment Reactive Ink |
| Color Set | Dye: Cyan, Magenta, Yellow, Black Pigment: Matte Black |
| Buffer Ram | 32GB |
| Hard Drive | 320GB |
| Media Width | Cut Sheet - 8"- 36" (203.2mm - 914mm) Roll Feed - 10" - 36" (254mm - 914mm) |
| Media Thickness | 0.07-0.8mm (2.8-31.4mil) |
| Maximum Roll Print Length | Roll Feed - 59' (18 meters) 5 Cut Sheet - 63" (1.6 meters) |
| Maximum Media Roll Diameter | 5.9" (150mm) |
| Borderless Printing Width | 10", B4, A3, 14", A2, 17", B2 (20.28"/515 mm), A1 (23.38"/594mm), 24", A0 (33.11"/841mm), B1, 36" |
| Paper Feed Method | Roll Feed: One Roll, Top-loading, Front output Cut Sheet: One sheet, Top loading, Front output |
| Languages | GARO (Canon Proprietary) |
| Noise Level Approx | Operation: 48 dB (A) or less Standby: 35 dB (A) or less Acoustic Power: Approx. 6.5 Bels |
| Physical Dimensions | 42" (H) x 51" (W) x 35" (D) (When basket is open) 42" (H) x 51" (W) x 43" (D) (When basket is extended for flatbed stacking) Box Dimensions: 31" (H) x 56" (W) x 46" (D) |
| Weight | Approximately 150lbs. with stand
Box Weight: Approximately 249 lbs |
| Power Source | AC-100-240V (50-60Hz) |
| Power Consumption | Maximum: 140W or less Standby 5W or less Power Off: .5W or less (Compliant with Executive Order) |
| Operating Environment | Temperature: 59°-86° F (15°-30° C) Relative Humidity: 10-80% (No Condensation) |
| User-replaceable items | Print Head: PF-04, Maintenance Cartridge: MC-10, Ink Tanks: PFI-107 (130ml: C, M, Y, BK, MBK), PFI-207 (300ml: C, M, Y, BK, MBK) |
| Software Included | Canon Printer Driver, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Direct Print & Share, imagePROGRAF Print Utility2, PosterArtist Lite (PC Only), Print Plug-in for Microsoft® Word/Excel/PowerPoint (PC only), Status Monitor, Media Configuration Tool, Optimized Module for AutoCAD |
Download Manufacturer SpecificationsAccessories
Reviews
Set your printer for the proper paper type and weight. Fine art papers are heavier than ordinary inkjet or bond papers so set the printer to thicker paper settings.
When power is applied, you should hear the print mechanism initialize and most printers have at least one light which will be illuminated when it is on.
It is always better to use original branded ink cartridges to reduce chances of clogging, leaking and bleeding.
